Stainless steel filter screen is made by combining different mesh sizes of metal mesh with support mesh and undergoing edge wrapping process.

Stainless steel filter material: 201304316316L, etc.

Features:

1. Average filtration accuracy: 5-80um;

2. It has the characteristics of high flow rate and high filtration efficiency;

3. The main specifications include: 40/20, 65/30, 90/30, 90/45, 125/60, 155/70, 175/90, and other specifications.

Performance: Strong acid and alkali resistance, high temperature resistance, tensile strength, and wear resistance.

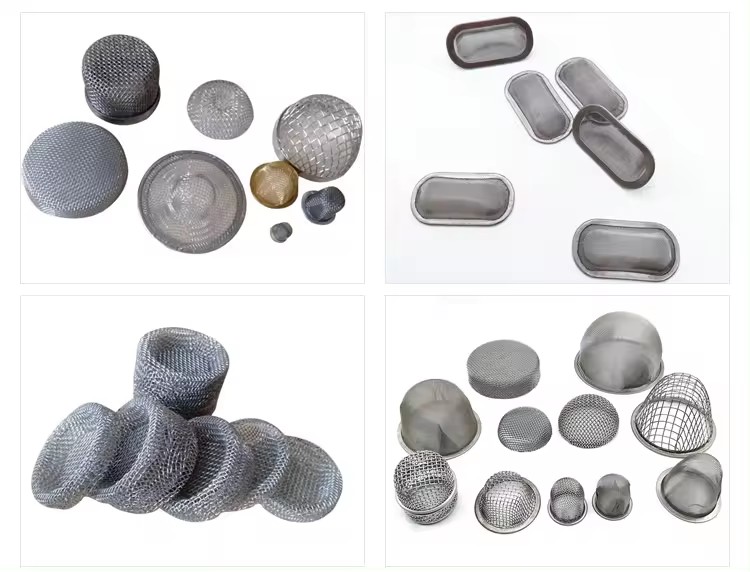

Filter types: single-layer and multi-layer; Divided into circular, rectangular, waist shaped, elliptical, etc. according to their appearance. Multi layer mesh has two layers and three layers.

Filter diameter: 5 millimeters to 600 millimeters.

Classified by process:

1. Multi layer spot welding filter mesh.

  2. Multi layer edging filter mesh.

Stainless steel filter screens are divided into rectangular, circular, circular, pitch shaped, waist shaped, and irregular shapes according to their shapes.

Stainless steel filter mesh is divided into single-layer mesh, multi-layer composite filter mesh, and combination filter mesh according to structure.

Stainless steel filter mesh is divided into single layer, double layer, three layer, four layer, five layer, and multiple layer according to the number of layers.

The main material of stainless steel filter mesh is stainless steel filter mesh. (20-800 mesh).

Usage

Used for screening and filtration under acidic and alkaline environmental conditions, used as mud screen in the petroleum industry, screen filter in the chemical fiber industry, and acid washing screen in the electroplating industry., The filtration of melts such as chemical fiber spinning, short fibers, ultrafine fibers, leather, non-woven fabrics, plastic granulation (PVC cable material. sheath material), sheet extrusion (PEPPABSPS), masterbatch, rubber, etc.

Applicable machinery: various imported domestic types of "chemical fiber spinning machines, leather and non-woven fabric equipment, twin-screw extruder" spinnerets and component filters.
